Edible Oil Refinery Line

  • Edible Oil Refinery Line

Short Description:

Edible Oil Refining Line can refine various kinds of oil, such as peanut oil, soybean oil, sesame oil, rapeseeds oil, sunflower oil, cotton seeds oil, flax seeds oil, palm kernel oil, camellia oil, hemp seeds oil, castor seeds oil, mustard seeds oil, etc.


Product Detail

Production Case

Edible Oil Refining Line can refine various kinds of oil, such as peanut oil, soybean oil, sesame oil, rapeseeds oil, sunflower oil, cotton seeds oil, flax seeds oil, palm kernel oil, camellia oil, hemp seeds oil, castor seeds oil, mustard seeds oil, etc.

Edible Oil Refinery Line Main Equipments:
* Refining Tank, Bleaching Tank, Stainless Steel Deodorizing Tank
* Heat conduction furnace: provide heat required for oil heating and steam distillation.
* Vacuum pump: provide high pressure for bleaching, deodorization.
* Air compressor: dry the bleached clay after bleaching.
* Oil filter: filter the clay in the bleached oil.
* Steam generator: produce steam for deodorizing process.

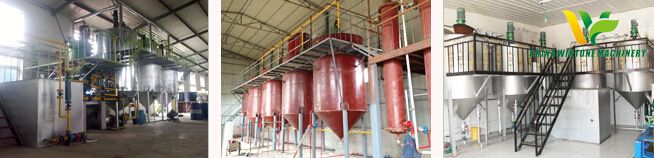

oil refinery

Edible Oil Refinery Line Process:
1. Degumming
* Purpose: to remove gums, which affect the stability of oil and process effect of oil refining and deep processing.
* Pretreatment: the crude oil is filtered by plate oil filter before degumming, so that to reduce the content of mechanical impurities, and further avoid emulsification or too much neutral oil contained in foots.
* Method: hydration by adding hot water(accompanied with stirring), heating, drying and cooling. Nonhydratable phosphatides can turn hydratable by adding citric acid or phosphoric acid.
* Impurities removed: mainly phosphatides, meawhile, protein, glycosyl diglyceride, mucus and trace metal ions are also removed by adsorbed on phosphatides.
* Byproduct: hydrated oil foot, can be dried for lecithin, used for food additives and feed additives.

2. Neutralizing
* Purpose: to remove free fatty acids(FFA), which affect the flavor and stability of oil, meanwhile increasing the soluability of gums.
* Method: degummed oil is mixed with caustic solution(NaOH)(accompanied with stirring), the reaction between NaOH and free fatty acids forms soapstocks, which settle down and get removed. Then the oil is heated, washed by hot water for 2-3 times till the waste water is clean, then dried.
* Impurities Removed: mainly free fatty acids, part of impurities, including pigments, protein, phosphatides and solid impurities, are also removed by adsorption on soapstocks.
* Byproduct: soapstock can be used for manufacture of soaps and biodiesel, added in livestock feed, or treated for the fatty acids it contains.

oil refinery line

3. Bleaching
* Purpose: to remove pigments, which affect the color, quality and stability of oil, as well as food safety and the effect of deep processing.
* Method: neutralized oil is pumped into the bleaching tank, with stirring, first heated and dried, and then mixed with bleaching earth. Finally, the oil is pressed into the oil filter by air compresser to remove the bleaching earth.
* Impurities Removed: mainly pigments, besides, peroxide, trace metals, phosphatides, soaps, PAHs and residual pesticide are also removed.

4. Deodorizing
* Purpose: to remove odor substances (mainly FFA) that are naturally present in the oil or created during processing. After deodorizing, the smoke point of oil is increased, the color, flavor, quality and stability are improved.
* Method: The bleached oil is pumped into deodorzing tank, subject to steam distillation under high temperature and high vacuum, and then the oil is cooled and stored.
* Impurities Removed: odor substances, as well as peroxide and its decomposition product, some thermosensitive pigments, volatile decomposition product of protein in musty oilseeds, small molecular weight PAHs and residue pesticide.
