YZYX10J-2 Coconut Oil Press Machine

  • YZYX10J-2 Coconut Oil Press Machine

Short Description:

The series YZYX10 COCONUT OIL PRESS MACHINE was produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. YZYX10J-2 coconut oil press machine has characteristics of small investment, high capacity, strong compatibility and high efficiency. YZYX10J-2 coconut oil press machine is widely used in small oil refinery and rural enterprise.


Product Detail

Production Case

Coconut Oil Press Machine

The series YZYX10 COCONUT OIL PRESS MACHINE was produced by our company is suitable for squeezing vegetable oil from coconut, rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. YZYX10J-2 coconut oil press machine has characteristics of small investment, high capacity, strong compatibility and high efficiency. YZYX10J-2 coconut oil press machine is widely used in small oil refinery and rural enterprise.

The product conforms to the “Technology Standard of Agricultural Spiral Oil Press” under JB/T9793·1-1999 of the People's Republic of China.

The YZYX10J-2 are 4 step squeezing spiral oil presses newly developed by our company. Their pressing force in the chamber is bigger than that of 3 step squeezing model. Practices proved that the press result and oil yield efficiency are better when properly process the oil plants which have been pretreated well. They are suitable for users with operation experience and stress on low oil content in the cake. Users could obtain bigger profit.

Above models are without cake cracking device. The models with cake cracking device have S at the end of the model number. The model numbers will have WK when the machine is equipped with electric heating instrument.



YZYX10J-2 Coconut Oil Press Machine Main Features:

Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.

Oil Plants

Processing Capacity (t/24h)

Oil content of

Dry cakes (%)

Oil yield Efficiency (%)

Electricity

Consumption (k.W.h/t)

Rapeseed

≥4.5

≤8.0

≥80

≤35

Cotton seeds

≥4.5

≤7.5

≥75

≤55

Soybean

≥3.8

≤7.0

≥65

≤52

Peanut

≥4.5

≤8.0

≥91

≤35

Note:

① It is normal that sometimes the actual results may be a little different from those in the index, for the oil plant’s type, quality and original content may be different in different areas.

② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.



YZYX10J-2 Coconut Oil Press Machine Technical Specification:

ITEMS

YZYX10J-2

REMARKS

Revolving speed

of spiral axis (r/min)

26-41



Drive type

Triangle belt



Power required(KW)

11

4 pole electro-motor

Measurement (mm)

1720 x 580 x 1185

L x W x H

Weight (kg)

590



Note:

This weight is without electro-motor’s weight.

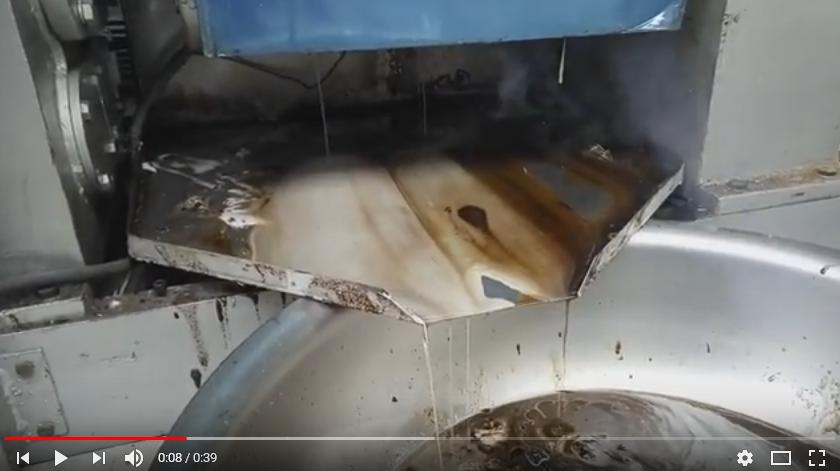

 Coconut oil press machine video:

Coconut Oil Press Machine.jpg
