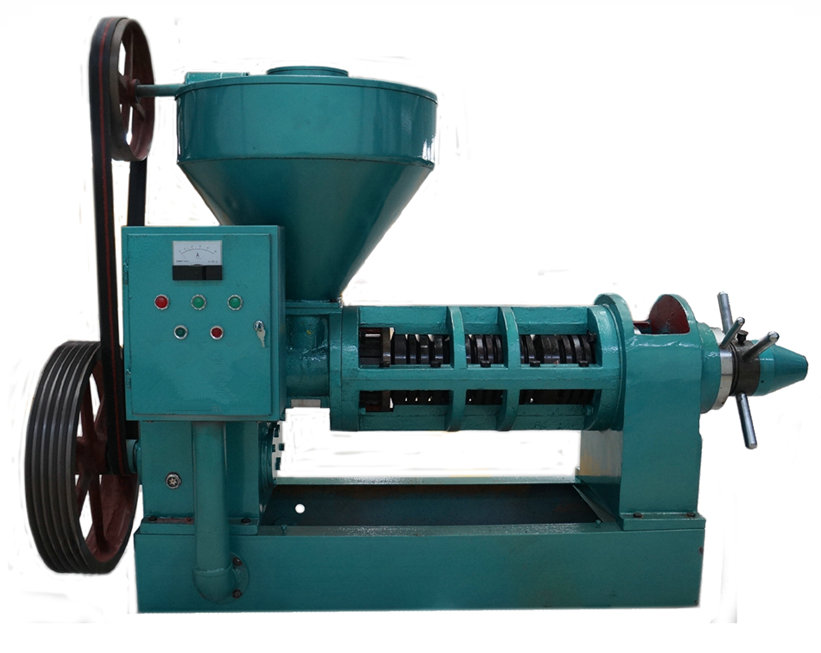

YZYX130 Spiral Oil Press Machine

  • YZYX130 Spiral Oil Press Machine

Short Description:

Our series YZYX130 spiral oil press machine is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. Spiral oil press machine has characteristics of small investment, high capacity, strong compatibility and high efficiency. Spiral oil press machine is widely used in small oil refinery and rural enterprise.


Product Detail

Production Case

Spiral Oil Press Machine



 Our series YZYX130 SPIRAL OIL PRESS MACHINE is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. Spiral oil press machine has characteristics of small investment, high capacity, strong compatibility and high efficiency. Spiral oil press machine is widely used in small oil refinery and rural enterprise.

The product conforms to the “Technology Standard of Agricultural Spiral Oil Press” under JB/T9793·1-1999 of the People's Republic of China.

YZYX130 Spiral Oil Press Machine is basic 2-step-squeezing spiral oil press.

YZYX130-2 Spiral Oil Press Machine is 3-step squeezing spiral oil press with bigger compression ratio in the press chest, suitable for users who have operation experience and stress on low oil content of the dry cakes.

YZYX130-9 Spiral Oil Press Machine is 3-step-squeezing spiral oil press with lengthened squeeze chamber.

YZYX130-10 Spiral Oil Press Machine is 4-step-squeezing spiral oil press. The pressure in its squeeze chamber is bigger; therefore, the squeezing efficiency is higher.



Spiral Oil Press Machine Main Features:

Below features are based on oil plants with above medium quality smoothly and continuously squeezed after good pretreatments as screening, husking, flaking and cooking, etc.

Oil Plants

Processing  Capacity(t/24h)

Oil content of

Dry cakes (%)

Oil yield efficiency   (%)

Electric power consumption (kw.h/t)

Rapeseed

≥8.0

≤8.0

≥80

≤35

Cotton seeds

≥8.0

≤7.5

≥75

≤55

Soybean

≥8.0

≤7.0

≥65

≤52

Peanut

≥8.0

≤8.0

≥91

≤35

Note:

① It is normal that sometimes the actual results may be a little different from those in the index because the oil plant’s type, quality and original content may be different in different areas.

② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.


Spiral Oil Press Machine Technical Specification:

Item

YZYX130-2

YZYX130-9(10)

Revolving speed

of spiral axis (r/min)

28-40

Transmission type

Triangle belt Transmission

Power required(kw)

15(Y160L-4)or 18.5 (Y18M-4)

Measurement (mm)

1850x742x1500

1950x742x1500

Weight (kg)

825

900

Note:

This weight is without electro-motor’s weight.
