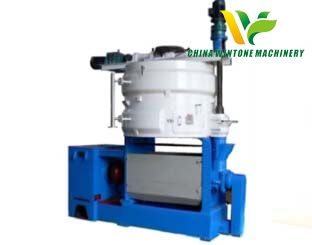

LYZX Series Cold Pressing Machine

  • LYZX Series Cold Pressing Machine

Short Description:

LYZX Series low-temperature cold oil press is a first generation low-temperature screw expeller which is suitable for processing of various kinds of vegetable oil-bearing crops under low temperature.


Product Detail

Production Case

LYZX Series Cold Pressing Machine Description:
LYZX Series low-temperature cold oil press is a first generation low-temperature screw expeller which is suitable for processing of various kinds of vegetable oil-bearing crops under low temperature.
The cold oil press mill machine suits for cold press of various kinds of oil plants. The screw cold oil press mill can be used for the pressing of husked rapeseed, peanut kernel, soybean, olive, walnut kernel, maize germ, rice bran, tea seed, chinaberry seed, rubber seed, China pepper seed, tomato seed, water melon seed, grape seed, flax seed, oenothera seed, pepper seed, castor seed, orange seed, cocoa bean, coffee bean, perilla, almond kernel, peach seed kernel, etc.
cold oil press machine

LYZX Series Cold Pressing Machine Features:
1. The protein in the oil cake damage is low because of the low temperature pressing thus making full use of the vegetable protein.
2. The pressing oil is with bright color, high nutrition. Natural oil is gained by mechanical sedimentation and filtering. There is no need for refining, reducing consumption.
3. Low temperature (approx .50。C), saving the steam significantly.
4. Low consumption in oil, cake nutrition and tace element, and at the same time the cake protein is preserved. One of the important reason is that the oil material has no contact with any solvent, acid, alkali, bleaching earth or chemical additive in the oil pressing process.

LYZX Series Cold Pressing Machine Technical Parameters:


Model
LYZX18
LYZX24
LYZX28
LYZX32
LYZX34
Production Capacity
6-12T/D
20-25T/D
40-60T/D
80-100T/D
150-180T/D
Feeding Temperature
approx. 50°C
approx. 50°C
approx. 50°C
approx. 50°C
approx. 50°C
Dry CakeResidual OilRate
4-8%
10-19%
15-19%
15-19%
11-15%
Total motor power
(22+4+3)KW
30+5.5+3KW
45+11+1.5KW
90+7.5+1.5KW
160+15KW
Net weight
3500KG
6300KG
9600KG
12650KG
14980KG
Dimension(mm)
3176×1850×2600
3180×1850×3980
3783×3038×3050
4832×2917×3236
4935×1523×2664
Remark
Cold pressed peanut for reference
Cold pressed peanut for reference
Cold pressed peanut for reference
Cold pressed peanut for reference
Cold pressed peanut for reference





















We can supply design, manufacture, installation, calibration and after service of  Cold  oil Pressing Machine.
