    • YZYX90 Spiral Oil Press
      Writer: YZYX90 spiral oil press From: YZYX90 spiral oil press
      Size: Big Medium Small Time: 2017-06-30 14:41:12

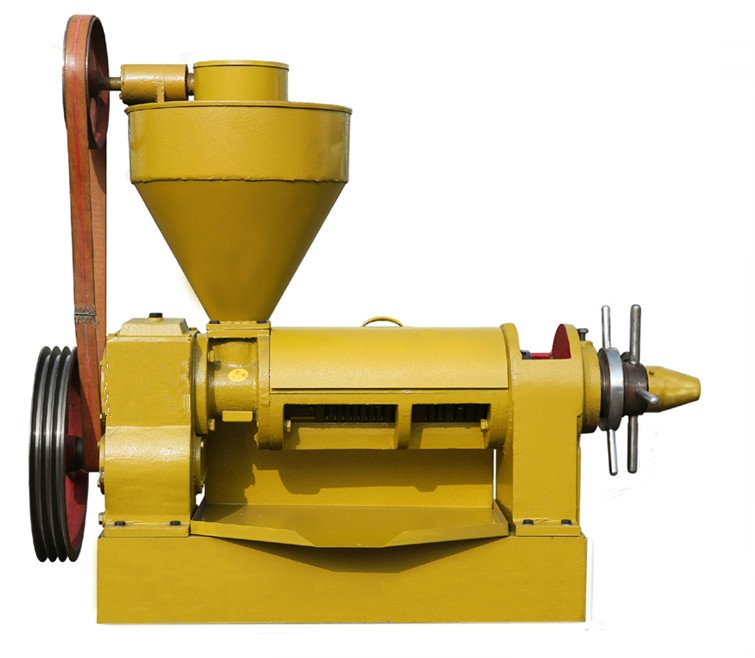

       YZYX90 spiral oil press.JPG



      The series YZYX90 & YZYX70 spiral oil press produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.

      The product conforms to the “Technology Standard of Agricultural Spiral Oil Press” under JB/T9793·1-1999 of the People's Republic of China.

      YZYX90 is the basic 2-step-squeezing spiral oil press. The day capacity can reach series YZYX10 (95).

      YZYX90-2 is 3-step-squeezing spiral oil press.

      YZYX70 is 2-step-squeezing spiral oil press. It is well known for its convenient operation and good squeeze efficiency. It is widely used in rural enterprise.

      YZYX70-8 is 3-step-squeezing spiral oil press.



      Main Features:

      Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.

      Oil   Plants

      Processing Capacity (t/24h)

      Oil content of Dry cakes (%)

      YZYX90(-2)

      YZYX70(-8)

      Rapeseed

      ≥3.0

      ≥1.3

      ≤8.0

      Cotton seeds

      ≥3.0

      ≥1.3

      ≤7.5

      Soybean

      ≥2.6

      ≥0.9

      ≤7.0

      Peanut

      ≥3.0

      ≥1.3

      ≤8.0

      Note:

      ① It is normal that sometimes the actual results may be a little different from those in the index, for the oil plant’s type, quality and original content may be different in different areas.

      ② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.


      Technical Specification:

      ITEMS

      YZYX90(-2)

      YZYX70(-8)

      REMARKS

      Revolving speed of spiral axis (r/min)

      32-42

      36-42



      Driving

      Triangle Belt

      Power   required(KW)

      5.5

      4

      4   pole electromotor

      Measurement   (mm)

      1200 x 550 x 1000

      1090 x 405 x 806

      L x W x H

      Weight   (kg)

      285

      195



      Note:

      This weight is without electro-motor’s weight.
